The KTP-445U Universal Power Pack amplifies both an aftermarket or factory installed head unit power, resulting up to a 150 percent power increase over the original power from the head unit's built-in amplifier.

Features

• Compact size
• 45 Watts x 4 @ 4Ω/2Ω
• 90 Watts x 2 @ 4Ω Bridged
• Built-in High Pass Crossovers
• For aftermarket and factory installed systems
• Frequency Response: 15Hz – 45kHz

BEST SIGNAL-TO-NOISE CONTENDER IN ITS CLASS

In order to ensure that Alpine sound quality is heard at your ears, we’ve created a platform that offers an unbelievably low noise floor, taking extra care to ensure a clean signal path, with no extraneous interference. The end result: The Power Pack boasts 1 Watt Signal-to-Noise Ratio of 82dB or better.

TOTAL HARMONIC DISTORTION (THD+N) VS. FREQUENCY

Uniquely, the Power Pack distortion actually decreases at higher frequencies, resulting in a clean and clear signal where your ear is most sensitive to distortion. - < 0.03% THD+N @ 1W, 1% THD+N @ rated power.

COMPACT

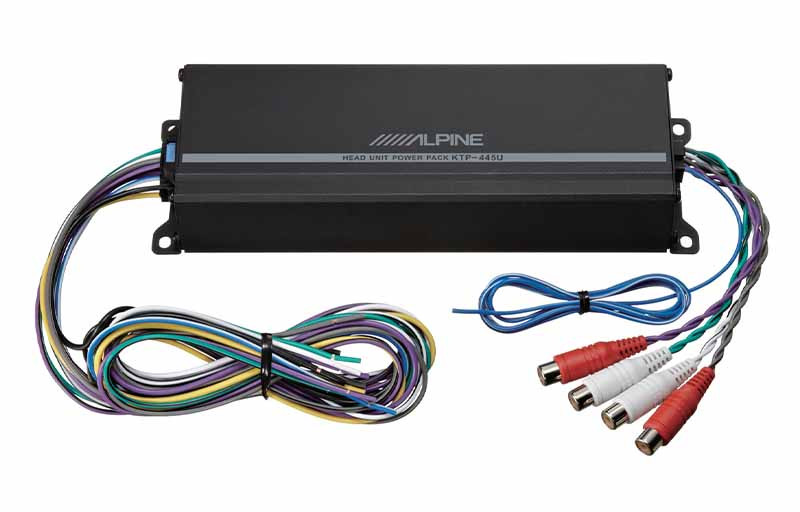

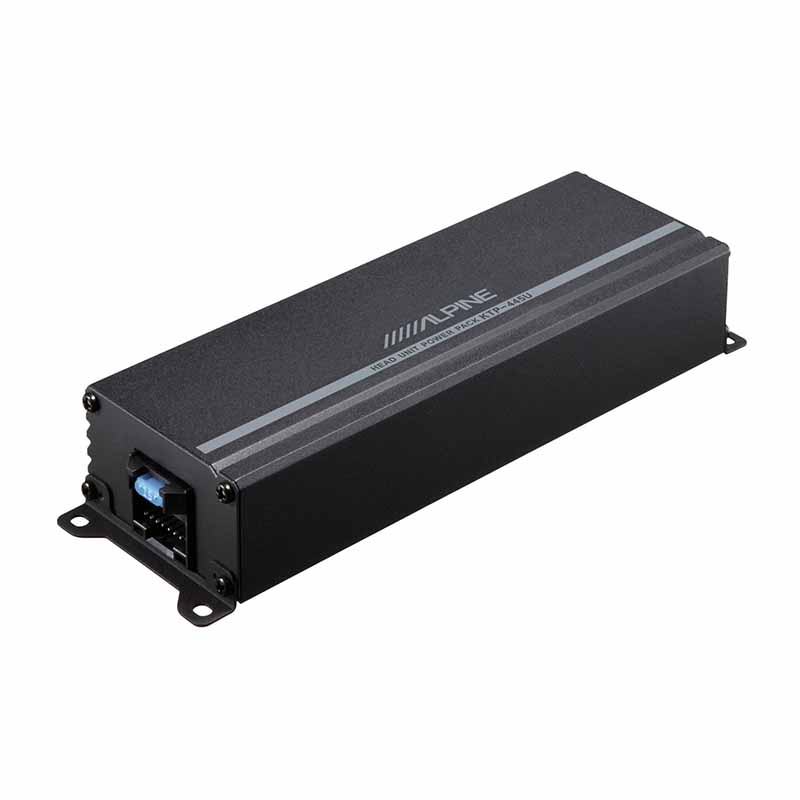

Compact size lets the KTP-445U fit where most amplifiers won’t. The KTP-445U comes equipped with the RCA and Auto-Sensing-Speaker level connectors and it fits behind the head unit in the dash of most vehicles. It's small and compact at only 7-7/16” x 1-1/2” x 2-1/2”. The size and flexible wires make the Power Pack an easy choice to save space.

CONFIGURABLE INPUTS

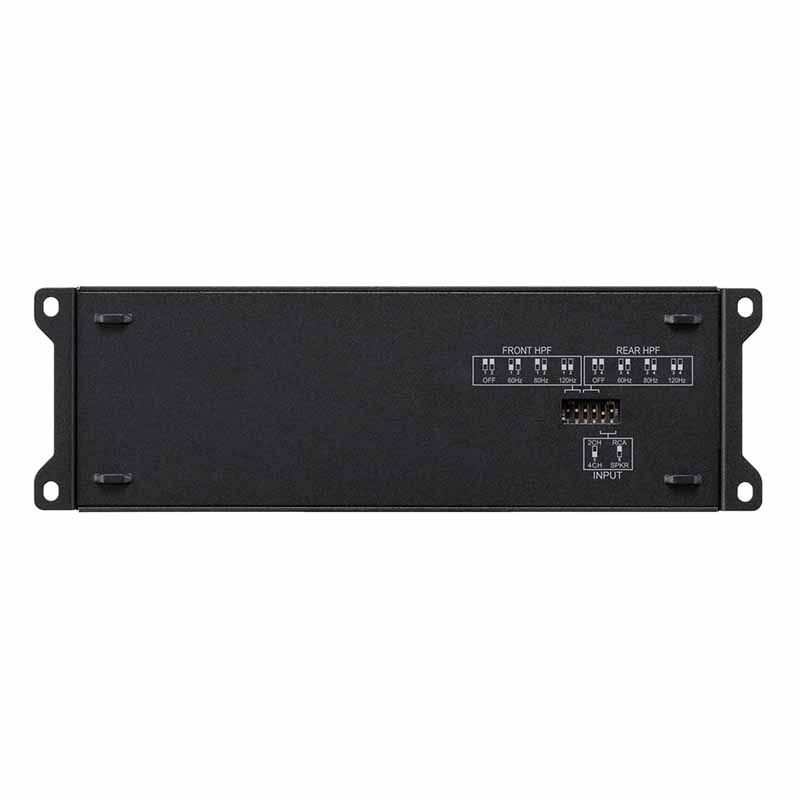

Need configurable options for Speaker-Level or RCA inputs to the Power Pack? On the bottom panel of the Power Pack there are selectable input options to accommodate Speaker-Level (0.5V-10V) or RCA (0.2V – 4V) inputs. Selectable 2 Channel and 4 Channel options give you the control to determine source inputs, and can eliminate the need for Y-adapters.
