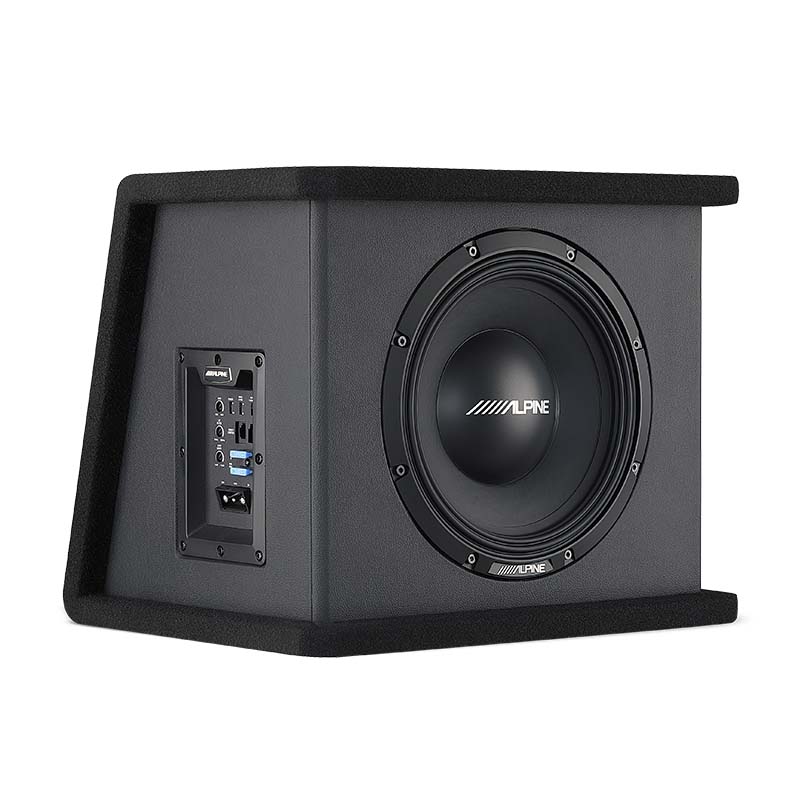

Bring powerful, controlled bass to your vehicle without building a separate amplifier and subwoofer system. The Alpine PWE-SB10 combines a 10" subwoofer, sealed wedge-style enclosure, and built-in 300-watt RMS amplifier into one compact, installation-friendly package.

Its space-saving wedge design fits well in trunks, cargo areas, and behind many vehicle seats, while high-level and low-level inputs allow it to integrate with factory or aftermarket audio systems. An included remote bass-level control lets you adjust the subwoofer output directly from the driver's seat.

Features

• Preloaded 10" powered subwoofer enclosure
• Built-in amplifier delivering 300 watts RMS and 450 watts peak
• Compact sealed wedge enclosure for flexible vehicle installation
• Dual 3-ohm voice-coil subwoofer optimized for the built-in amplifier
• Selectable low-level and high-level audio inputs
• Automatic turn-on capability for easier factory-system integration
• Included remote bass-level control with 0 to -12 dB adjustment
• Adjustable low-pass crossover from 50 Hz to 150 Hz
• Selectable 0-degree or 180-degree phase control
• Durable carpeted enclosure with black leather-look trim
• Premium embroidered Alpine logo

Powerful Integrated Bass Performance

The Alpine PWE-SB10 features a built-in amplifier engineered specifically for its 10" subwoofer and sealed enclosure. Delivering 300 watts RMS, the amplifier and subwoofer work together as a complete system to produce deep, controlled bass without requiring a separate external amplifier.

This matched design provides strong low-frequency output while maintaining the tight, accurate bass response needed for rock, hip-hop, country, electronic music, and other demanding music styles.

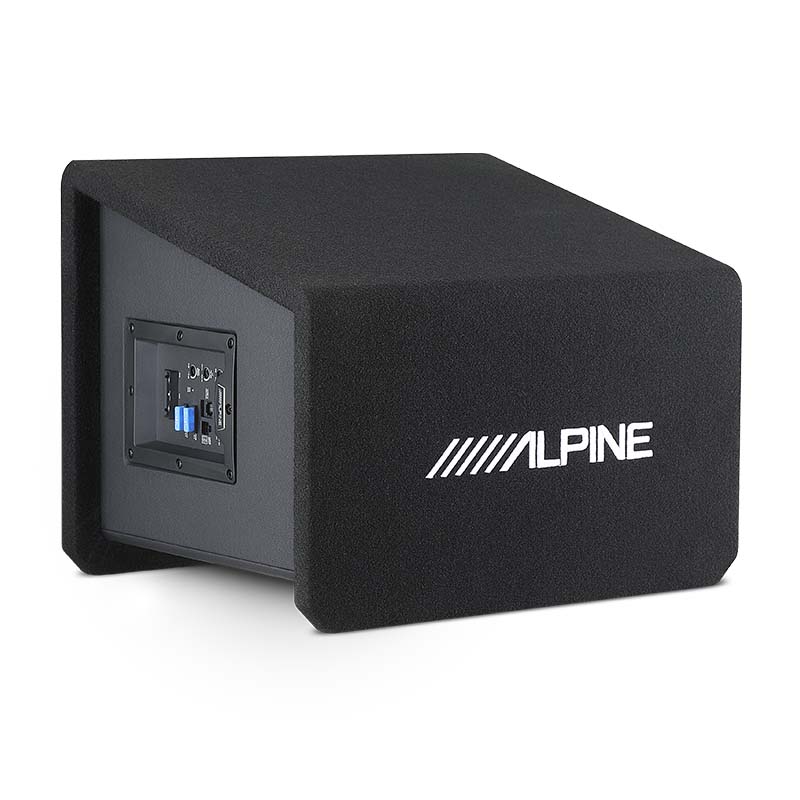

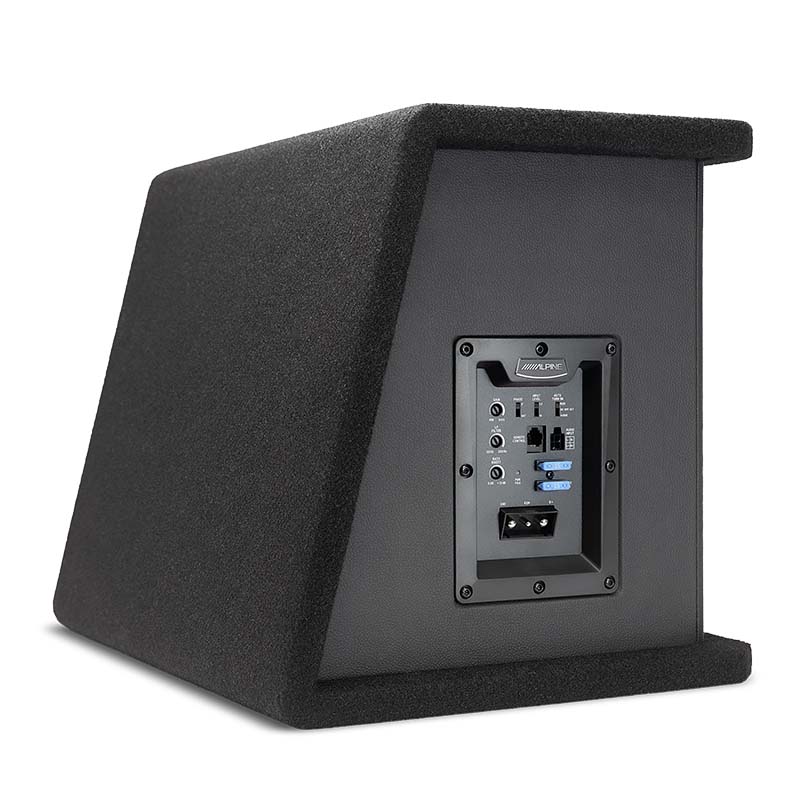

Compact Wedge Design

The compact wedge-shaped enclosure gives installers more placement options than a traditional rectangular subwoofer box. It can be positioned in many trunks, rear cargo areas, or behind seats while preserving valuable storage space.

The sealed enclosure helps produce accurate, controlled bass, while the angled cabinet can help direct low-frequency output into the passenger compartment. Its carpeted exterior, black trim, and embroidered Alpine logo provide a clean, finished appearance.

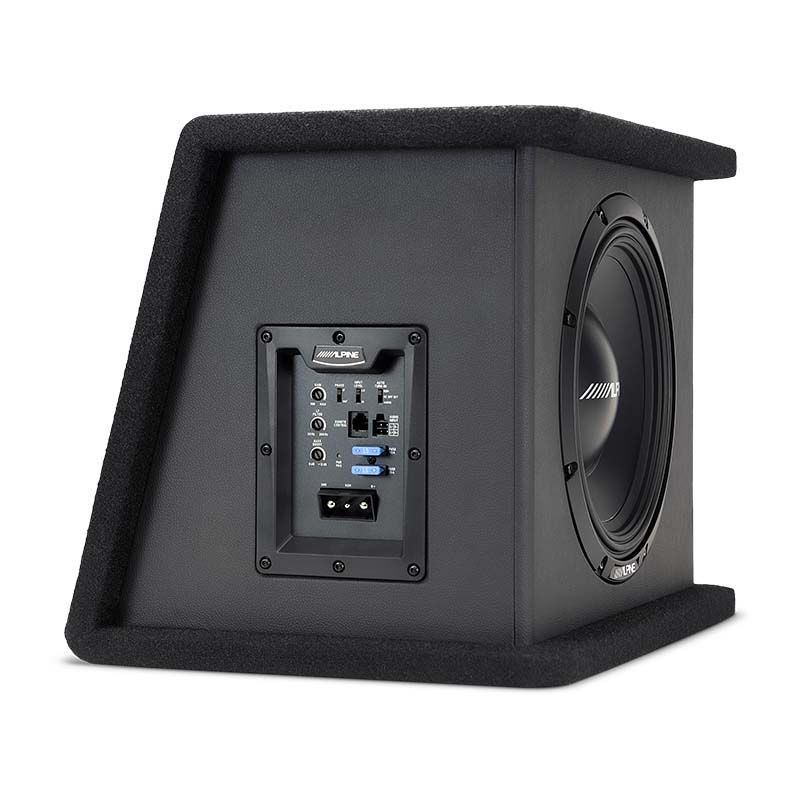

Factory and Aftermarket Radio Compatibility

Selectable high-level and low-level inputs allow the PWE-SB10 to connect to a wide variety of audio systems. Low-level RCA inputs can be used with aftermarket radios and processors, while high-level speaker inputs make integration possible with many factory-installed radios.

Automatic turn-on functionality can simplify installations where a traditional amplifier remote wire is unavailable. The adjustable low-pass crossover and phase control allow the subwoofer to be tuned to blend smoothly with the vehicle's existing speakers.

Bass Control from the Driver's Seat

The included remote level control allows you to adjust subwoofer output without opening the trunk or cargo area. This is especially useful when changing between music styles, adjusting for different recordings, or reducing bass when passengers prefer a quieter listening experience.

Technical Specifications

What's Included

• Alpine PWE-SB10 powered subwoofer enclosure
• Built-in 300-watt RMS amplifier
• Remote bass-level control
• Installation and operating documentation

Professional Installation Recommended

A powered subwoofer still requires properly sized power and ground wiring, circuit protection, audio-signal connections, secure mounting, and system tuning. Professional installation helps protect the vehicle's electrical system and ensures the subwoofer performs correctly with the factory or aftermarket radio.
